The company is situated in the dynamic industrial region Stuttgart, which guarantees the best conditions for a further successful development. It’s all the more gratifying that MATRIX®, following an analysis by the F.A.Z. institute on 150.000 companies and research centers in Germany, was included into the top group of organizations with innovative strength. This is a great confirmation of our leitmotif THE PERFECT MATCH.
Metrology & Assembly

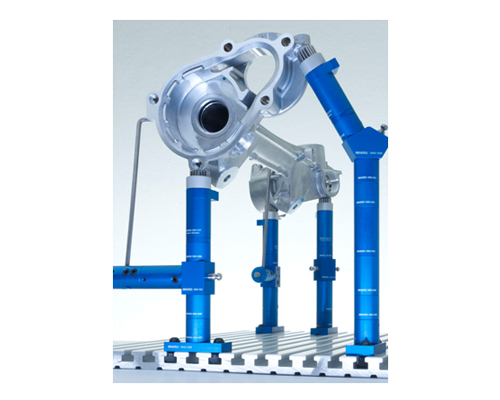

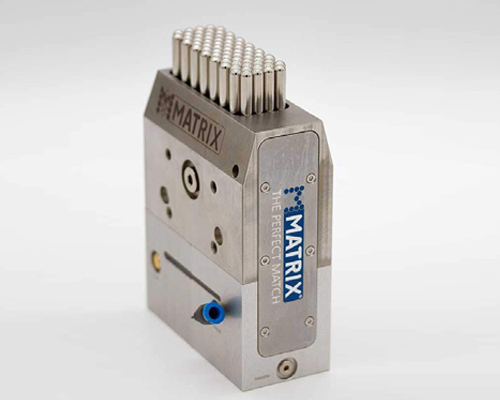

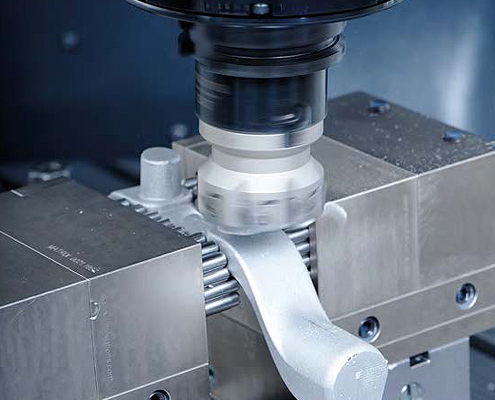

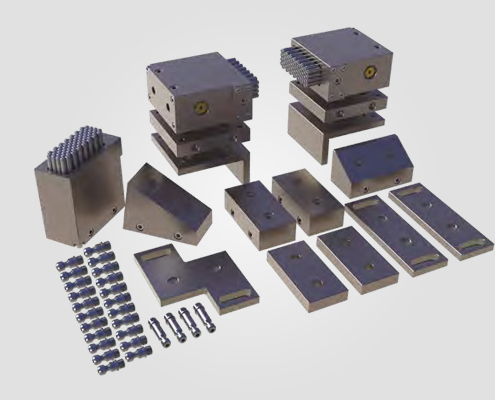

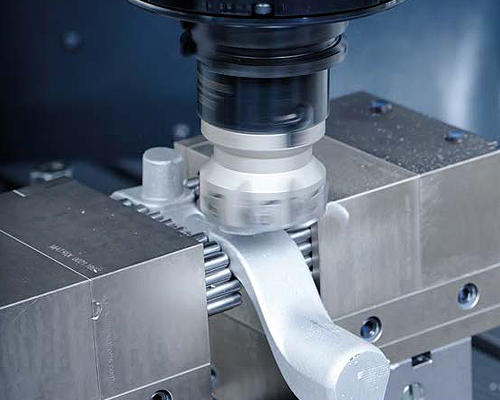

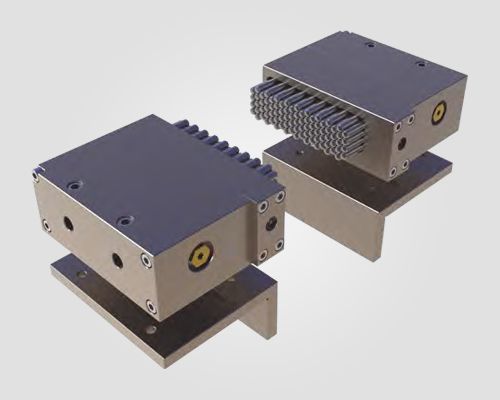

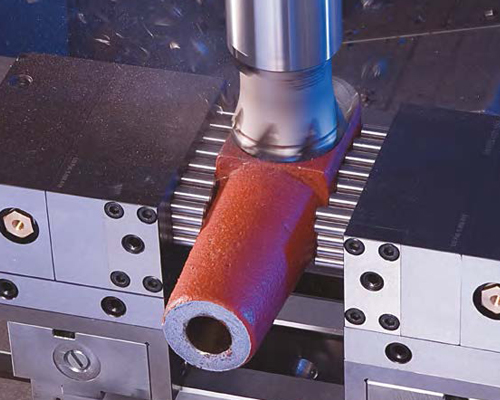

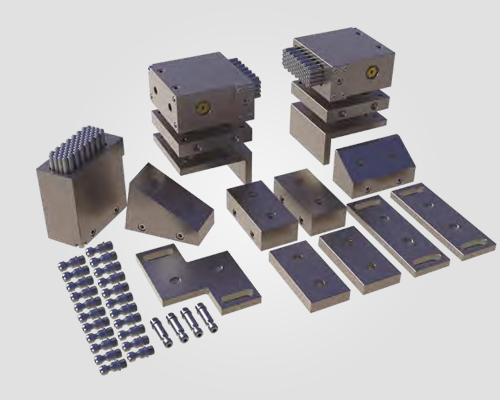

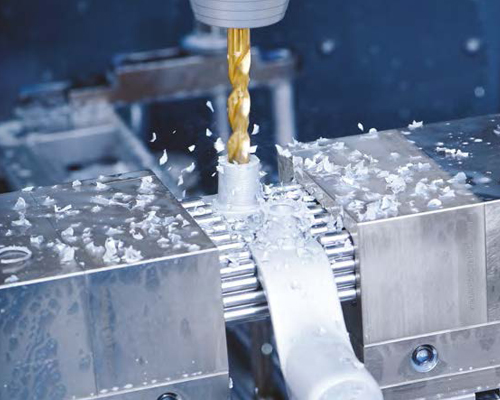

| External dimensions W x L x H (mm) | 50 x 110 x 134,5 |
| Clamping surface broadside x long side (mm) | 30 x 79 |
| Number of pins | 67 |
| Diameter of the individual pins (mm) | 6 |
| Stroke (mm) | 21 |
| Max. holding forces the axial pinfield passive | 1 kN |
| Max. holding forces the axial pinfield active | 4 kN |

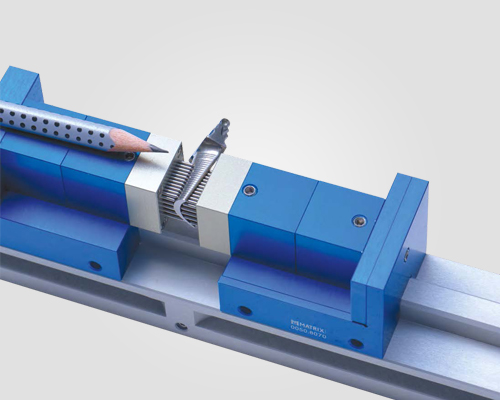

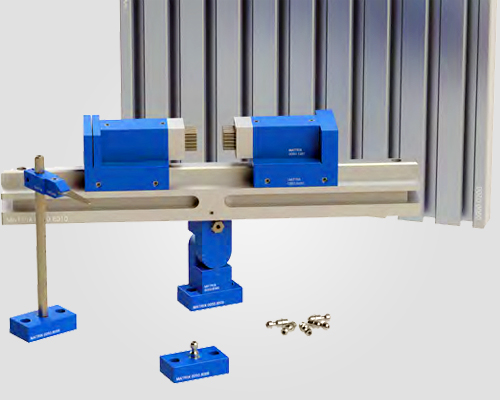

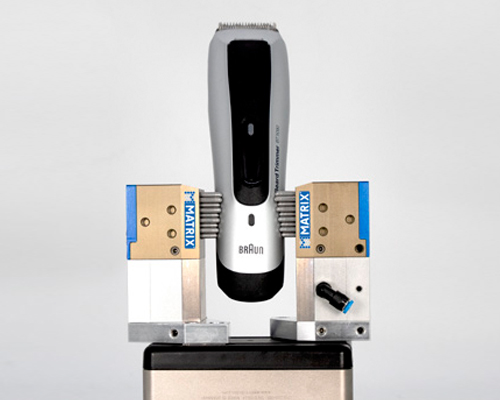

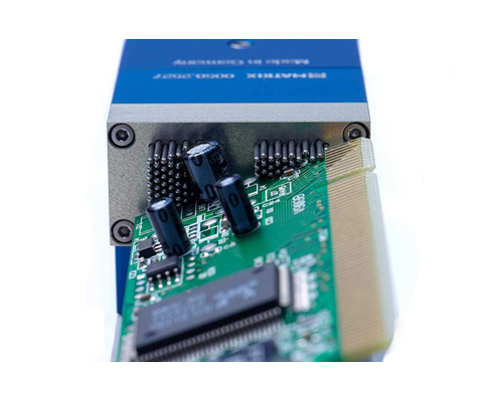

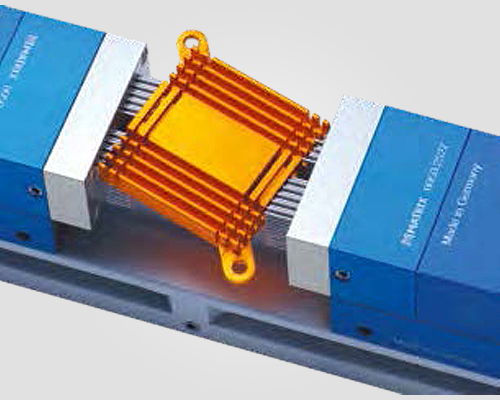

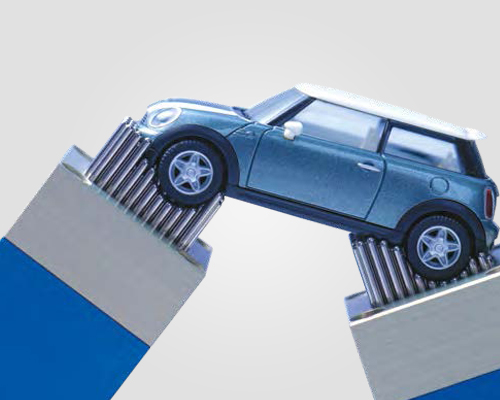

| External dimensions W x L x H (mm) | 32 x 70 x 37 |
| Clamping surface broadside x long side (mm) | 21 x 24 |
| Number of pins | 58 |
| Diameter of the individual pins (mm) | 3 |
| Stroke (mm) | 11 |
| Max. holding forces the axial pinfield passive | 40 N |
| Max. holding forces the axial pinfield active | 90 N |

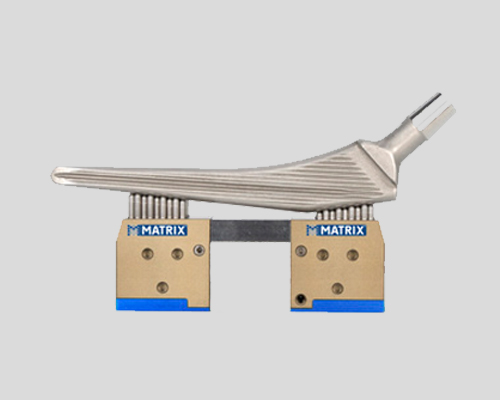

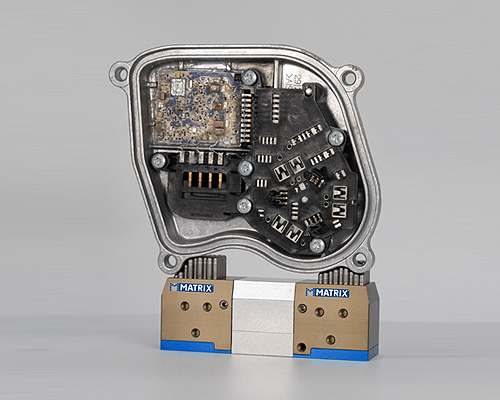

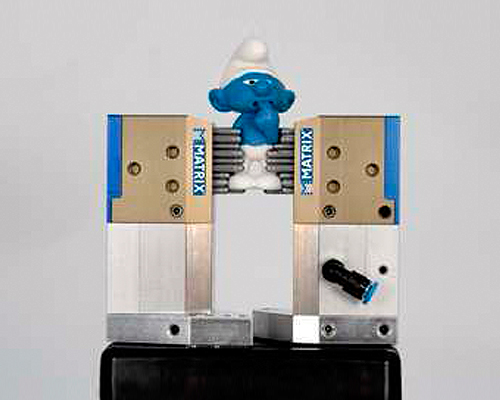

| External dimensions W x L x H (mm) | 32 x 108 x 37 |
| Clamping surface broadside x long side (mm) | 2 x 21 x 24 |
| Number of pins | 116 |
| Diameter of the individual pins (mm) | 3 |
| Stroke (mm) | 11 |
| Max. holding forces the axial pinfield passive | 80 N |
| Max. holding forces the axial pinfield active | 180 N |

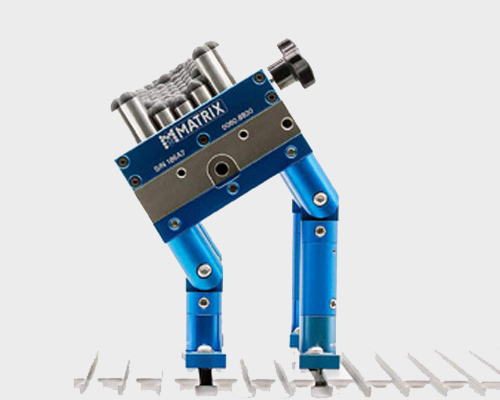

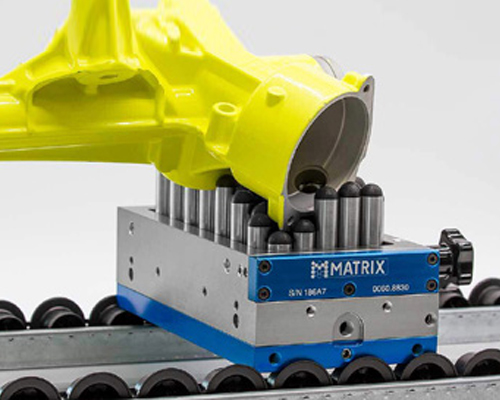

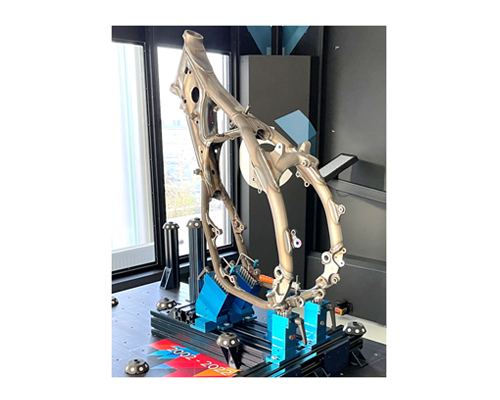

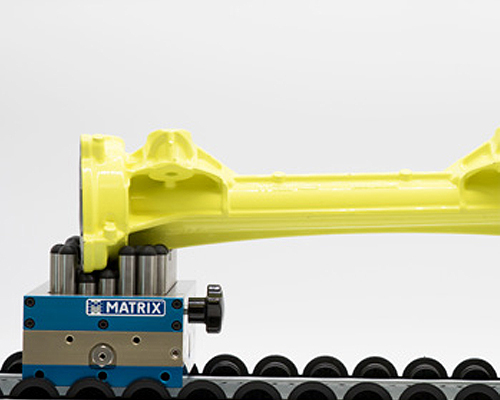

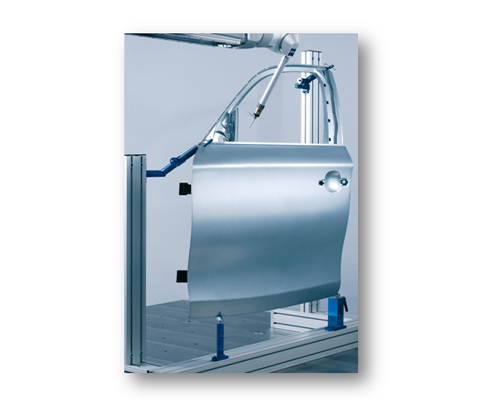

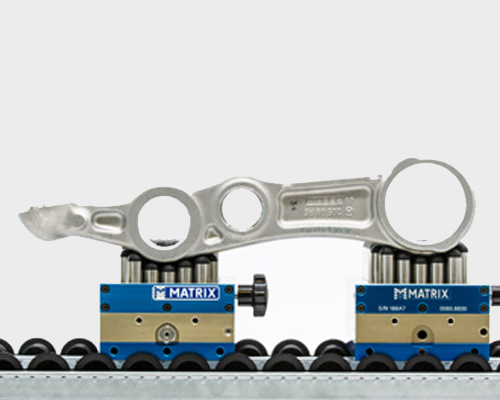

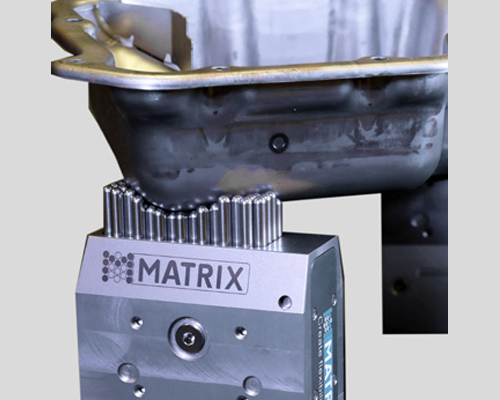

| External dimensions W x L x H (mm) | 120 x 240 x 104 |
| Clamping surface broadside x long side (mm) | 90 x 197 |
| Number of pins | 82 |
| Diameter of the pins (mm) | 15 |
| Clamping mechanism | manual |
| Stroke (mm) | 30 |
| Max. holding forces the axial pinfield | 2,0 kN |

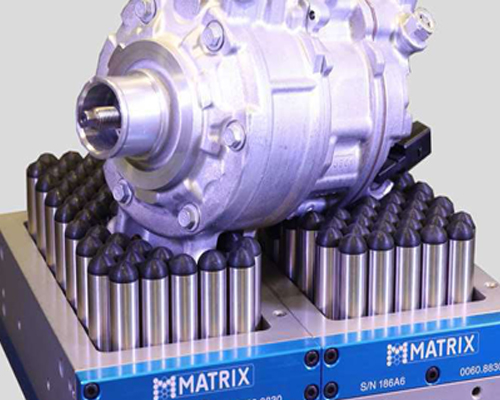

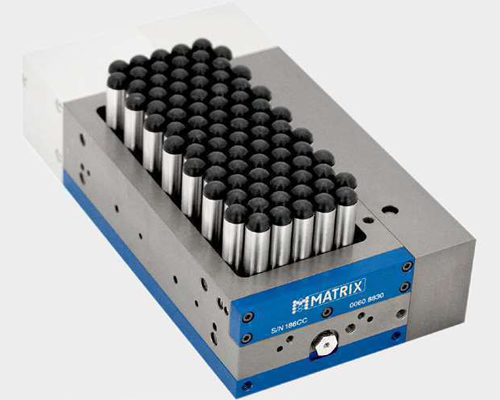

| External dimensions W x L x H (mm) | 165 x 305 x 104 |
| Clamping surface broadside x long side (mm) | 90 x 197 |
| Number of pins | 82 |
| Diameter of the pins (mm) | 15 |
| Clamping mechanism | pneumatic |
| Stroke (mm) | 30 |
| Max. holding forces the axial pinfield | 2,0 kN |

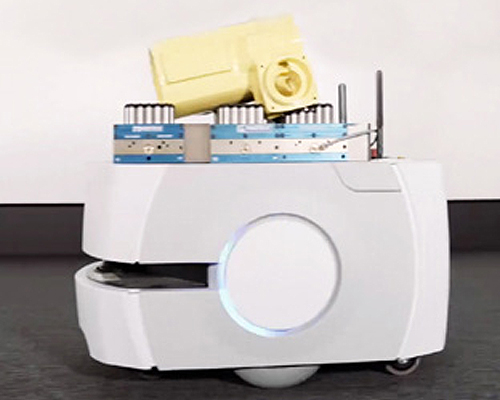

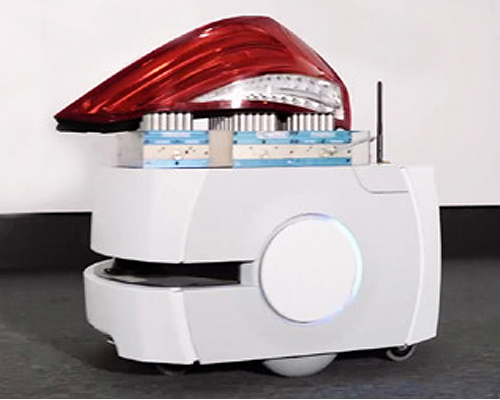

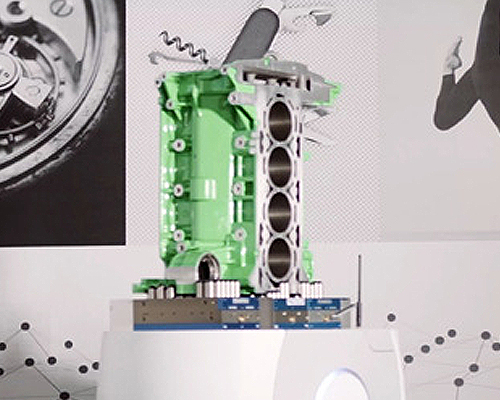

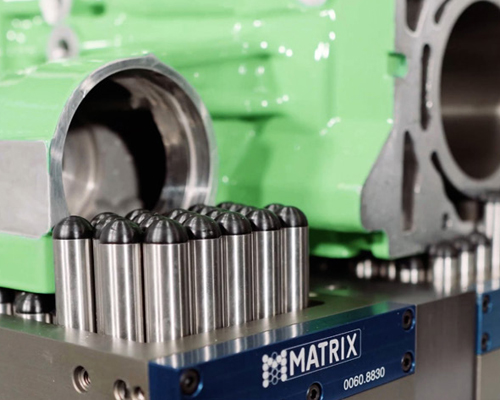

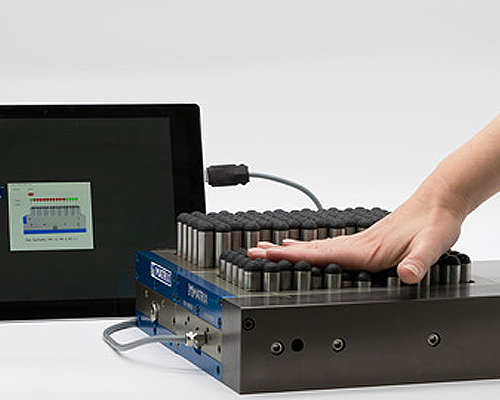

| External dimensions W x L x H (mm) | 332 x 285 x 104 |
| Clamping surface broadside x long side (mm) | 210 x 197 |
| Number of pins | 82 |
| Diameter of the pins (mm) | 15 |
| Clamping mechanism | electric 24 V |
| Stroke (mm) | 30 |
| Max. holding forces the axial pinfield | 2,0 kN |
